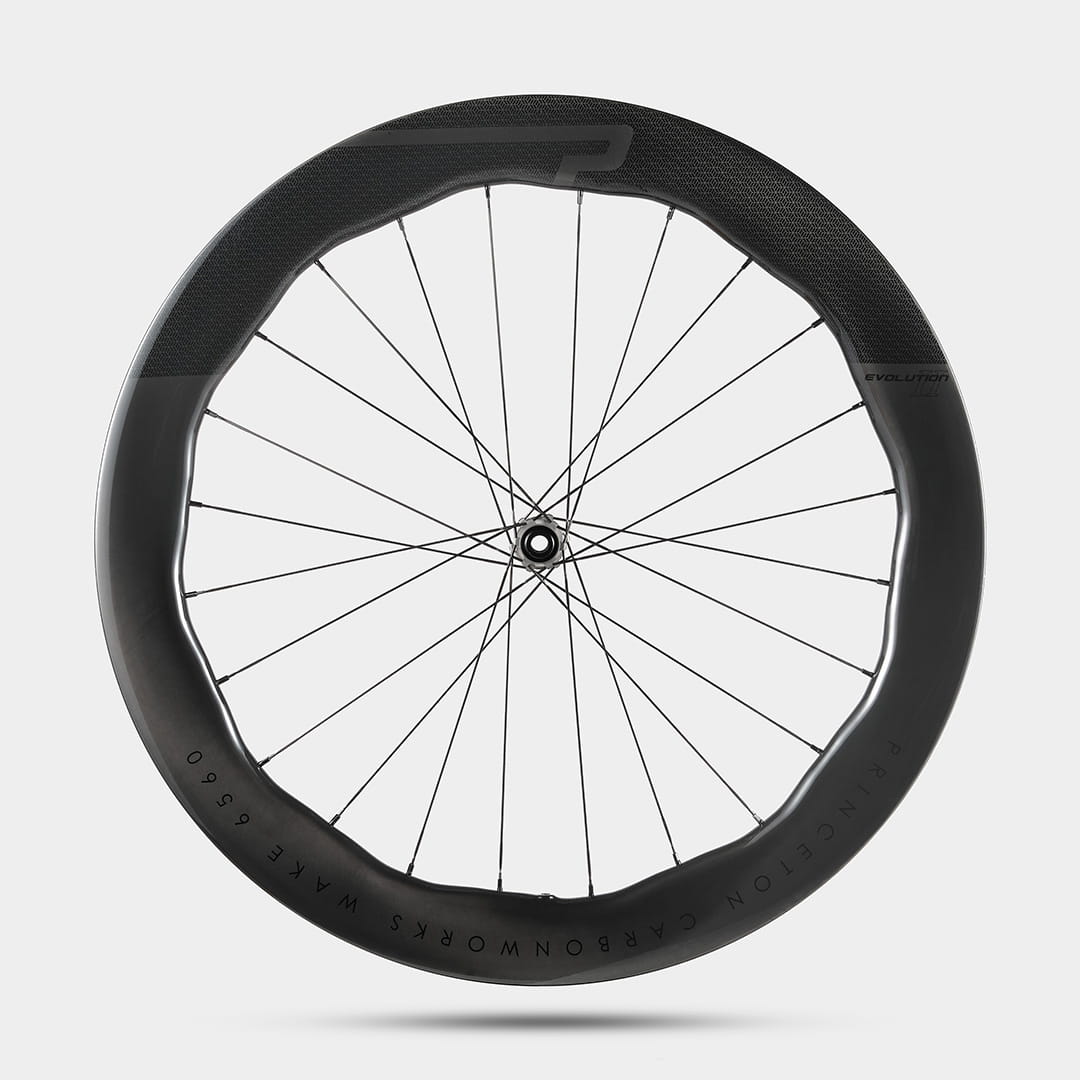

Princeton CarbonWorks Wake 6560 Evolution II

Lightweight, aero-optimized road wheelset built around a 28mm tire — fully hooked 22mm internal.

• Optimized around 28mm tires using 3D-scanned real tire shapes + CFD + wind tunnel validation

• Fully hooked 22mm internal / 33mm max external for modern 28mm performance

• Rim weight 420g (down from 470g on Evo I) while exceeding 120J impact

• Non-drilled tire bed (no tubeless tape needed)

• Pre-balanced rims to reduce vibrations and harmonics

Raced at the highest level — used to win the Men’s Ironman and Men’s 70.3 World Championships (last season).

Built from the tire outward

Development started with the tire: 23–32mm road tires were mounted on hooked rim widths (21/22/23/24mm), 3D scanned, then tested in CFD and validated in wind tunnels to find the most efficient tire + rim combination. The result: Princeton’s most aerodynamically efficient mass-start compliant road wheel, designed around a 28mm tire.

Faster in real-world wind angles

With a 28mm GP5000, Evo II reduces drag vs Evo I across all tested yaw angles, saving ~3–104 gf (peak around ±17.5°).

Key Specifications

• Intended tire size: Optimized for 28mm (tested with 23–32mm tire range in development)

• Rim internal width: 22mm

• Rim profile: Fully hooked

• Max external width: 33mm

• Rim weight: 420g (Evo I was 470g)

• Impact rating: Exceeds 120J

• Tire bed: Non-drilled (no tubeless tape required)

• Rims: Pre-balanced

• Included: Tubeless valves + padded wheel bags

• Availability: Available immediately


• Lightest setup: Tactic TR01 1250g

What’s in the box

• Wake 6560 Evolution II wheelset

• Tubeless valves

• Padded wheel bags
